skeleton_example

Overview #

This example shows how to use LIPSBodypose API to connect the camera, get and draw the skeletons on RGB images and 3D coordination.

Tutorial #

File	Function
main.cpp	The main process. It initializes the whole process, opens an OpenGL window and refreshes the whole process when necessary.
GLUTWindow.cpp	Build and refresh the windows.
PoseResult.cpp	Stores skeleton data (image / depth / skeleton)
renderColor.cpp	Renders color images (2D Overlay)
rednder3D.cpp	Renders 3D spaces

[main.cpp] – Tutorial #

1. Include header files to access the functions the header files provide.

#include <iostream>

// OpenGL headers
#include <GL/freeglut.h>

// LIPSBodyPose headers
#include <LIPSBodyPose.h>

// Headers for this example
#include "GLUTWindow.h"
#include "renderColor.h"
#include "render3D.h"
#include "PoseResult.h"

2. Create an instance of the body pose detection engine.

// LIPSBodyPose engine
lips::LIPSBodyPose lipsbodypose;

3. Create windows for display.

// Windows for display
std::shared_ptr<GLUTWindow> window_color;
std::shared_ptr<GLUTWindow> window_3d;

4. Create Timer callback function for continuous get skeleton result and update windows.

oid timer( int id )
{
    try
    {
        lips::Frame frame;                                          //1
        lipsbodypose.readFrame( frame );                            //2
        PoseResult& pose_result = PoseResult::Instance();           //3

        //4
        pose_result.setBGR( frame.color_image_bgr );
        pose_result.setDepth( frame.depth_image_mm );
        pose_result.setSkeletons( frame.skeletons );
        pose_result.setProfileInfo( frame.profile_info );

        //5
        window_color->update();
        window_3d->update();
    }
    catch( std::exception& e )
    {
        std::cout << "catch unexpected exception: " << e.what() << std::endl;
        exit( -1 );
    }
    // Reset timer
    glutTimerFunc( 0, timer, 0 );   //6
}

1 – A structure that holds one frame’s value of: RGB image, Depth image, Detected skeletons.
2 – Reads the latest available frame from the LIPS SDK
3 – Get PoseResult single instance
4 – Set the results to PoseResult
5 – Update windows
6 – Reset timer for 0 seconds

[GLUTWindow.cpp] – Tutorial #

1. Include header files to access the functions the header files provide.

#include "GLUTWindow.h"

#include <GL/freeglut.h>
#include <iostream>

2. Set up a default constructor.

LUTWindow::GLUTWindow()
{
    window = -1;
    window_name = default_name;
    window_width = default_width;
    window_height = default_height;
    init_func = NULL;
    display_func = NULL;
    reshape_func = NULL;
}

3. Allows setting the title, width, and height during object creation.

GLUTWindow::GLUTWindow( const std::string name, const int width, const int height )
{
    window = -1;
    window_name = name;
    window_width = width;
    window_height = height;
    init_func = NULL;
    display_func = NULL;
    reshape_func = NULL;
}

4. Set up a destructor.

LUTWindow::~GLUTWindow()
{
}

5. Set a callback function.

oid GLUTWindow::setInitFunc( void ( *func )( void ) )          //1
{
    init_func = func;
}

void GLUTWindow::setDisplayFunc( void ( *func )( void ) )       //2
{
    display_func = func;
}

void GLUTWindow::setReshapeFunc( void ( *func )( int, int ) )   //3
{
    reshape_func = func;
}

Section	Function
1	Stores a pointer to the function that initializes OpenGL state, buffers, etc
2	Function that is called in every frame to draw the scene.
3	Function called whenever window is resized.

6. Sets window size, creates a new GLUT window and stores its ID, enables double buffering (for smooth rendering), and ensures glutMainLoop() will return when the window closes.

oid GLUTWindow::create()
{
    glutInitWindowSize( window_width, window_height ); // create window
    window = glutCreateWindow( window_name.c_str() );
    glutInitDisplayMode( GLUT_DOUBLE | GLUT_RGB );   // double buffering and RGB
    glutSetOption( GLUT_ACTION_ON_WINDOW_CLOSE, GLUT_ACTION_GLUTMAINLOOP_RETURNS );
    if( init_func != NULL )
        init_func();
    if( display_func != NULL )
        glutDisplayFunc( display_func );
    if( reshape_func != NULL )
        glutReshapeFunc( reshape_func );
}

7. Refresh the wndow.

oid GLUTWindow::update()
{
    if( window >= 0 )
    {
        glutSetWindow( window );
        glutPostRedisplay();
    }
    else
    {
        std::cerr << "ERROR: Window not be created" << std::endl;
    }
}

[PoseResults.cpp] – Tutorial #

1. Include header files to access the functions the header files provide.

#include "PoseResult.h"
#include <LIPSBodyPose.h>

2. Defines the singleton object.

PoseResult PoseResult::object;

3. This is the public interface for accessing the shared PoseResult instance. Other parts of the program call PoseResult::Instance() to read or update data.

PoseResult& PoseResult::Instance()
{
    return object;
}

4. Getters (Accessor Functions).

std::vector<lips::Skeleton>& PoseResult::getSkeletons() const
{
    return object.skeletons;
}

lips::Image<unsigned char[3]>& PoseResult::getBGR() const
{
    return object.image_bgr;
}

lips::Image<unsigned short>& PoseResult::getDepth() const
{
    return object.image_depth;
}

lips::ProfileInfo& PoseResult::getProfileInfo() const
{
    return object.profile_info;
}

5. Setters (Mutator Functions).

oid PoseResult::setSkeletons( const std::vector<lips::Skeleton>& skeletons )
{
    object.skeletons = skeletons;
}

void PoseResult::setBGR( const lips::Image<unsigned char[3]>& image_bgr )
{
    object.image_bgr = image_bgr;
}

void PoseResult::setDepth( const lips::Image<unsigned short>& image_depth )
{
    object.image_depth = image_depth;
}

void PoseResult::setProfileInfo( const lips::ProfileInfo& profile_info )
{
    object.profile_info = profile_info;
}

[RenderColor.cpp] – Tutorial #

1. Include header files to access the functions the header files provide.

#if (defined _WIN64 || defined _WIN32)
#include <windows.h> // must be included before other header
#define _USE_MATH_DEFINES
#endif
#include <cmath>

#include "PoseResult.h"
#include "renderColor.h"
#include "intToColor.h"

#include <GL/glew.h>
#include <GL/gl.h>
#include <GL/glu.h>
#include <GL/freeglut.h>
#include <sstream>
#include <array>
#include <iomanip>

2. .Create a namespace block called renderColor.

namespace renderColor
{

3. Define the keypoints (joints) that should be connected with the lines to form the stick-like skeletal figure.

const std::vector<std::array<enum lips::Skeleton::Part, 2>> connection_pairs =
{
    // Face
    { lips::Skeleton::R_EYE, lips::Skeleton::R_EAR },
    { lips::Skeleton::L_EYE, lips::Skeleton::L_EAR },
    { lips::Skeleton::R_EYE, lips::Skeleton::NOSE },
    { lips::Skeleton::L_EYE, lips::Skeleton::NOSE },
    { lips::Skeleton::R_EYE, lips::Skeleton::HEAD },
    { lips::Skeleton::L_EYE, lips::Skeleton::HEAD },
    // Body
    { lips::Skeleton::NOSE, lips::Skeleton::NECK },
    { lips::Skeleton::NECK, lips::Skeleton::R_CLAVICLE },
    { lips::Skeleton::R_CLAVICLE, lips::Skeleton::R_SHOULDER },
    { lips::Skeleton::NECK, lips::Skeleton::L_CLAVICLE },
    { lips::Skeleton::L_CLAVICLE, lips::Skeleton::L_SHOULDER },
    { lips::Skeleton::R_SHOULDER, lips::Skeleton::R_HIP },
    { lips::Skeleton::L_SHOULDER, lips::Skeleton::L_HIP },
    { lips::Skeleton::L_HIP, lips::Skeleton::PELVIS },
    { lips::Skeleton::PELVIS, lips::Skeleton::R_HIP },
    { lips::Skeleton::NECK, lips::Skeleton::CHEST_SPINE },
    { lips::Skeleton::CHEST_SPINE, lips::Skeleton::NAVEL_SPINE },
    { lips::Skeleton::NAVEL_SPINE, lips::Skeleton::PELVIS },

    // Right arm
    { lips::Skeleton::R_SHOULDER, lips::Skeleton::R_ELBOW },
    { lips::Skeleton::R_ELBOW, lips::Skeleton::R_WRIST },
    { lips::Skeleton::R_WRIST, lips::Skeleton::R_HAND },
    { lips::Skeleton::R_HAND, lips::Skeleton::R_THUMB_TIP },
    { lips::Skeleton::R_HAND, lips::Skeleton::R_HAND_TIP },
    // Left arm
    { lips::Skeleton::L_SHOULDER, lips::Skeleton::L_ELBOW },
    { lips::Skeleton::L_ELBOW, lips::Skeleton::L_WRIST },
    { lips::Skeleton::L_WRIST, lips::Skeleton::L_HAND },
    { lips::Skeleton::L_HAND, lips::Skeleton::L_THUMB_TIP },
    { lips::Skeleton::L_HAND, lips::Skeleton::L_HAND_TIP },
    // Right leg
    { lips::Skeleton::R_HIP, lips::Skeleton::R_KNEE },
    { lips::Skeleton::R_KNEE, lips::Skeleton::R_ANKLE },
    { lips::Skeleton::R_ANKLE, lips::Skeleton::R_FOOT },
    // Left leg
    { lips::Skeleton::L_HIP, lips::Skeleton::L_KNEE },
    { lips::Skeleton::L_KNEE, lips::Skeleton::L_ANKLE },
    { lips::Skeleton::L_ANKLE, lips::Skeleton::L_FOOT }
};

4. Declare a global variable named id_pbo of type GLuint.

GLuint id_pbo;

5. Set up an OpenGL state for rendering textures and pixel buffer usage.

void init()
{
    glewInit();
    glGenBuffersARB( 1, &id_pbo );
    glActiveTexture( GL_TEXTURE0 );
    glBindTexture( GL_TEXTURE_2D, 0 );
    glTexParameteri( GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR );
    glTexParameteri( GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR );
    glTexEnvi( GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_REPLACE );
}

6. The main rendering function that is called whenever the window needs to be redrawn.

void display()
{
    static bool inited = false;

    glClearColor( 0, 0, 0, 1 ); //1
    glClear( GL_COLOR_BUFFER_BIT ); //2

    PoseResult& pose_result = PoseResult::Instance(); //3
    lips::Image<unsigned char[3]> image_bgr = pose_result.getBGR(); //4

    if( image_bgr.empty() )
        return;

    //5
    glBindBufferARB( GL_PIXEL_UNPACK_BUFFER_ARB, id_pbo );
    glBufferDataARB( GL_PIXEL_UNPACK_BUFFER_ARB,
                     image_bgr.width() * image_bgr.height() * image_bgr.bytesPerPixel(),
                     image_bgr.data(), GL_STREAM_DRAW_ARB );
    if( !inited )   //6
    {
        glTexImage2D( GL_TEXTURE_2D, 0, GL_RGB, image_bgr.width(), image_bgr.height(), 0, GL_BGR, GL_UNSIGNED_BYTE, nullptr );
        inited = true;
    }
    else
    {
        glTexSubImage2D( GL_TEXTURE_2D, 0, 0, 0, image_bgr.width(), image_bgr.height(), GL_BGR, GL_UNSIGNED_BYTE, nullptr );
    }
    glBindBufferARB( GL_PIXEL_UNPACK_BUFFER_ARB, 0 );

    renderTex();        //7
    renderPose();       //8

    glutSwapBuffers(); //9
}

Segment	Function
1	Background is black.
2	Clear the window.
3	get PoseResult single instance
4	get color image.
5	Set image to OpenGL texture.
6	Create or update.
7
8	Draws the skeleton lines and keypoints.
9	Swap buffers.

8. This function is responsible for rendering a 2D texture (the color image from the camera) onto a quad (rectangle) that spans the whole OpenGL viewport.

void renderTex()
{
    glEnable( GL_TEXTURE_2D );

    glColor4f( 1, 1, 1, 1 );
    glBegin( GL_QUADS );
    {
        glTexCoord2f( 0, 0 );
        glVertex2f( 0, 0 );
        glTexCoord2f( 0, 1 );
        glVertex2f( 0, 1 );
        glTexCoord2f( 1, 1 );
        glVertex2f( 1, 1 );
        glTexCoord2f( 1, 0 );
        glVertex2f( 1, 0 );
    }
    glEnd();

    glDisable( GL_TEXTURE_2D ); // disable texture
}

9. This function overlays detected skeleton data (like body joints and bones) over the camera image using OpenGL

oid renderPose()
{
    PoseResult& pose_result = PoseResult::Instance(); //1
    std::vector<lips::Skeleton> skeletons = pose_result.getSkeletons(); //2
    lips::Image<unsigned short> image_depth = pose_result.getDepth(); //3

    if( skeletons.size() == 0 )
        return;

    for( auto& skeleton : skeletons )
    {
        //4 Render lines //
        glLineWidth( 3 ); // seting pair line width
        std::array<float, 3> color = intToColor( skeleton.id() );
        glColor3f( color[0], color[1], color[2] );
        for( auto& pair : connection_pairs )
        {
            lips::Keypoint keypoint_a = skeleton[pair[0]];
            lips::Keypoint keypoint_b = skeleton[pair[1]];

            if( keypoint_a.is_valid && keypoint_b.is_valid ) //5
            {
                const float x_a = keypoint_a.point2d.x / image_depth.width();
                const float y_a = keypoint_a.point2d.y / image_depth.height();

                const float x_b = keypoint_b.point2d.x / image_depth.width();
                const float y_b = keypoint_b.point2d.y / image_depth.height();

                glBegin( GL_LINES );
                {
                    glVertex2f( x_a, y_a );
                    glVertex2f( x_b, y_b );
                }
                glEnd();
            }
        }

        //6
        const float joint_size = 0.007;
        glColor3f( color[0] + 0.5, color[1] + 0.5, color[2] + 0.5 );
        for( auto& keypoint : skeleton )
        {
            if( keypoint.is_valid ) //7
            {
                const float x = keypoint.point2d.x / image_depth.width(); // 0~1
                const float y = keypoint.point2d.y / image_depth.height(); // 0~1

                drawFilledCircle( x, y, joint_size );
            }
        }

        //8
        if( !image_depth.empty() )
        {
            lips::Keypoint keypoint = skeleton[lips::Skeleton::NECK];

            if( keypoint.is_valid )
            {
                const int pixel_x = static_cast<int>( keypoint.point2d.x + 0.5 );
                const int pixel_y = static_cast<int>( keypoint.point2d.y + 0.5 );

                const float norm_x = keypoint.point2d.x / image_depth.width();
                const float norm_y = keypoint.point2d.y / image_depth.height();

                const float distance_meter = static_cast<float>( image_depth.at( pixel_x, pixel_y ) ) / 1000;

                std::stringstream text;
                text << std::setprecision( 2 ) << distance_meter << "m";

                glPushMatrix();
                {
                    glLineWidth( 3 );
                    glColor3f( color[0] + 0.8, color[1] + 0.8, color[2] + 0.8 );
                    glTranslatef( norm_x - 0.05, norm_y + 0.1, 0 );
                    glScalef( 0.0002, 0.0002, 1 );

                    gluOrtho2D( 0, 1, 1, 0 ); // flip vertically
                    glutStrokeString( GLUT_STROKE_ROMAN, reinterpret_cast<const unsigned char*>( text.str().c_str() ) );
                }
                glPopMatrix();
            }
        }
    }
}

Segments	Functions
1	get PoseResult single instance.
2	get 3D skeleton data.
3	get depth map.
4	Render lines.
5	Verify if these keypoints are both available.
6	Render parts.
7	Verify if this particular keypoint is available.
8	Render neck distance.

10. Draws a filled circle at position (x, y) with the specified radius.

void drawFilledCircle( const float x, const float y, const float radius )
{
    const int triangle_amount = 10; //# of triangles used to draw circle

    const float twice_pi = static_cast<float>( M_PI * 2 );
    glBegin( GL_TRIANGLE_FAN );
    glVertex2f( x, y ); // center of circle
    for( int i = 0; i <= triangle_amount; i++ )
    {
        glVertex2f(
            x + ( radius * cos( i * twice_pi / triangle_amount ) ),
            y + ( radius * sin( i * twice_pi / triangle_amount ) )
        );
    }
    glEnd();
}

11. End namespace renderColor.

} // namespace renderColor

[render3D.cpp] – Turorial #

1. Include header files to access the functions the header files provide.

#if (defined _WIN64 || defined _WIN32)
#include <windows.h> // must be included b4 other header
#endif

#include "PoseResult.h"
#include "render3D.h"
#include "intToColor.h"

#include <GL/gl.h>
#include <GL/glu.h>
#include <GL/freeglut.h>
#include <sstream>
#include <iomanip>
#include <array>

2. Create a namespace block called render3D.

namespace render3D
{

3. Define the keypoints (joints) that should be connected with the lines to form the stick-like skeletal figure.

const std::vector<std::array<enum lips::Skeleton::Part, 2>> connection_pairs =
{
    // Face
    { lips::Skeleton::R_EYE, lips::Skeleton::R_EAR },
    { lips::Skeleton::L_EYE, lips::Skeleton::L_EAR },
    { lips::Skeleton::R_EYE, lips::Skeleton::NOSE },
    { lips::Skeleton::L_EYE, lips::Skeleton::NOSE },
    { lips::Skeleton::R_EYE, lips::Skeleton::HEAD },
    { lips::Skeleton::L_EYE, lips::Skeleton::HEAD },
    // Body
    { lips::Skeleton::NOSE, lips::Skeleton::NECK },
    { lips::Skeleton::NECK, lips::Skeleton::R_CLAVICLE },
    { lips::Skeleton::R_CLAVICLE, lips::Skeleton::R_SHOULDER },
    { lips::Skeleton::NECK, lips::Skeleton::L_CLAVICLE },
    { lips::Skeleton::L_CLAVICLE, lips::Skeleton::L_SHOULDER },
    { lips::Skeleton::R_SHOULDER, lips::Skeleton::R_HIP },
    { lips::Skeleton::L_SHOULDER, lips::Skeleton::L_HIP },
    { lips::Skeleton::L_HIP, lips::Skeleton::PELVIS },
    { lips::Skeleton::PELVIS, lips::Skeleton::R_HIP },
    { lips::Skeleton::NECK, lips::Skeleton::CHEST_SPINE },
    { lips::Skeleton::CHEST_SPINE, lips::Skeleton::NAVEL_SPINE },
    { lips::Skeleton::NAVEL_SPINE, lips::Skeleton::PELVIS },

    // Right arm
    { lips::Skeleton::R_SHOULDER, lips::Skeleton::R_ELBOW },
    { lips::Skeleton::R_ELBOW, lips::Skeleton::R_WRIST },
    { lips::Skeleton::R_WRIST, lips::Skeleton::R_HAND },
    { lips::Skeleton::R_HAND, lips::Skeleton::R_THUMB_TIP },
    { lips::Skeleton::R_HAND, lips::Skeleton::R_HAND_TIP },
    // Left arm
    { lips::Skeleton::L_SHOULDER, lips::Skeleton::L_ELBOW },
    { lips::Skeleton::L_ELBOW, lips::Skeleton::L_WRIST },
    { lips::Skeleton::L_WRIST, lips::Skeleton::L_HAND },
    { lips::Skeleton::L_HAND, lips::Skeleton::L_THUMB_TIP },
    { lips::Skeleton::L_HAND, lips::Skeleton::L_HAND_TIP },
    // Right leg
    { lips::Skeleton::R_HIP, lips::Skeleton::R_KNEE },
    { lips::Skeleton::R_KNEE, lips::Skeleton::R_ANKLE },
    { lips::Skeleton::R_ANKLE, lips::Skeleton::R_FOOT },
    // Left leg
    { lips::Skeleton::L_HIP, lips::Skeleton::L_KNEE },
    { lips::Skeleton::L_KNEE, lips::Skeleton::L_ANKLE },
    { lips::Skeleton::L_ANKLE, lips::Skeleton::L_FOOT }
};

4.Set the position of the camera (i.e. the eye point) in 3D space.

const float eye[]  = { 0,  5.0, -10 }; // eye position
const float look[] = { 0,  2.0,  10 }; // look at this position
const float up[]   = { 0, -1.0,   0 }; // camera up vecter
const float frustum[] = { -0.5,  // left,
                          0.5,   // right,
                          0.5,   // bottom,
                          -0.5,  // top,
                          1.0,   // near,
                          1000 // far
                        };

5.This function is part of an OpenGL rendering pipeline, responsible for drawing the current frame on the screen.

void display()
{
    glClearColor( 0, 0, 0, 1 ); // background is black
    glClear( GL_COLOR_BUFFER_BIT ); // clear the window

    glLoadIdentity();
    gluLookAt( eye[0],  eye[1],  eye[2],
               look[0], look[1], look[2],
               up[0],   up[1],   up[2] );

    renderFloor();
    renderPose();
    renderAxis();
    renderProfileInfo();

    glutSwapBuffers(); // swap buffers
}

6.The reshape() function is a callback triggered when the OpenGL window is resized. It redefines how the scene is projected onto the screen.

void reshape( int width, int height )
{
    glViewport( 0, 0, width, height );
    glMatrixMode( GL_PROJECTION );
    glLoadIdentity();
    glFrustum( frustum[0], // left,
               frustum[1], // right,
               frustum[2], // bottom,
               frustum[3], // top,
               frustum[4], // near,
               frustum[5]  // far
             );
    glMatrixMode( GL_MODELVIEW );
}

7.This function visually represents the 3D world axes (X, Y, Z) using colored lines. This helps users understand orientation and direction in 3D space.

oid renderAxis()
{
    glPushMatrix();
    {
        glLineWidth( 3 );

        // X Axis, red
        glColor3f( 1, 0, 0 );
        glBegin( GL_LINES );
        {
            glVertex3f( 0, 0, 0 );
            glVertex3f( 1, 0, 0 );
        }
        glEnd();

        // Y Axis, green
        glColor3f( 0, 1, 0 );
        glBegin( GL_LINES );
        {
            glVertex3f( 0, 0, 0 );
            glVertex3f( 0, 1, 0 );
        }
        glEnd();

        // Z Axis, blue
        glColor3f( 0, 0, 1 );
        glBegin( GL_LINES );
        {
            glVertex3f( 0, 0, 0 );
            glVertex3f( 0, 0, 1 );
        }
        glEnd();
    }
    glPopMatrix();
}

8. This function visually represents the virtual 3D spaces.

void renderFloor()
{
    glColor3f( 0.2, 0.2, 0.2 );
    glLineWidth( 1 );
    glBegin( GL_LINES );
    for( float x = -25; x <= 25; x++ )
    {
        // Vertical lines
        glVertex3f( x, 0,  25 );
        glVertex3f( x, 0, -25 );
        // Horizontal lines
        glVertex3f( 25, 0, x );
        glVertex3f( -25, 0, x );
    }
    glEnd();
}

9.This function renders a grid floor (like a ground plane) to give a spatial reference in the 3D scene. Think of it like graph paper stretched across the XZ-plane (horizontal ground).

void renderPose()
{
    PoseResult& pose_result = PoseResult::Instance(); // get PoseResult single instance
    std::vector<lips::Skeleton> skeletons = pose_result.getSkeletons(); // get 3D skeleton data

    if( skeletons.size() == 0 )
        return;

    const float coord_factor = 0.005;

    for( auto& skeleton : skeletons )
    {
        // Render lines
        glLineWidth( 8 ); // seting pair line width

        std::array<float, 3> color = intToColor( skeleton.id() );
        glColor3f( color[0], color[1], color[2] );
        for( auto& pair : connection_pairs )
        {
            lips::Keypoint keypoint_a = skeleton[pair[0]];
            lips::Keypoint keypoint_b = skeleton[pair[1]];

            if( keypoint_a.is_valid  && keypoint_b.is_valid ) // if these keypoints are both available
            {
                const float x_a = keypoint_a.point3d.x * coord_factor;
                const float y_a = keypoint_a.point3d.y * coord_factor;
                const float z_a = keypoint_a.point3d.z * coord_factor;

                const float x_b = keypoint_b.point3d.x * coord_factor;
                const float y_b = keypoint_b.point3d.y * coord_factor;
                const float z_b = keypoint_b.point3d.z * coord_factor;

                glBegin( GL_LINES );
                {
                    glVertex3f( x_a, y_a, z_a );
                    glVertex3f( x_b, y_b, z_b );
                }
                glEnd();
            }
        }

        // Render parts
        glColor3f( color[0] + 0.5, color[1] + 0.5, color[2] + 0.5 );
        for( auto& keypoint : skeleton )
        {
            float x = keypoint.point3d.x; // world coordinate: millimeter
            float y = keypoint.point3d.y; // world coordinate: millimeter
            float z = keypoint.point3d.z; // world coordinate: millimeter

            x *= coord_factor; // downscale for rendering
            y *= coord_factor; // downscale for rendering
            z *= coord_factor; // downscale for rendering

            if( keypoint.is_valid ) // if this keypoint is available
            {
                glMatrixMode( GL_MODELVIEW );
                glPushMatrix();
                {
                    glTranslatef( x, y, z );
                    glutSolidSphere( 0.15, 10, 10 ); // glutSolidSpere draw at (0,0,0), so translate to target position and draw
                }
                glPopMatrix();
            }
        }
    }
}

10.This function displays real-time performance info (like FPS and latency) as text on the OpenGL window — typically drawn in the bottom-left corner.

void renderProfileInfo()
{
    PoseResult& pose_result = PoseResult::Instance(); // get PoseResult single instance
    lips::ProfileInfo profile_info = pose_result.getProfileInfo(); // get statistic data

    std::stringstream text;
    text << "FPS: " << std::setprecision( 4 ) << profile_info.fps << " | ";
    text << "LATENCY: " << std::setprecision( 4 ) << profile_info.latency_ms << "ms";

    glMatrixMode( GL_MODELVIEW );
    glPushMatrix();
    glMatrixMode( GL_PROJECTION );
    glPushMatrix();
    {
        glMatrixMode( GL_PROJECTION );
        glLoadIdentity();
        gluOrtho2D( 0, 1, 0, 1 );

        glMatrixMode( GL_MODELVIEW );
        glLoadIdentity();
        glLineWidth( 2 );
        glColor3f( 1, 1, 1 );
        glTranslatef( 0.02, 0.02, 0 );
        glScalef( 0.00035, 0.00035, 1 );

        glutStrokeString( GLUT_STROKE_ROMAN, reinterpret_cast<const unsigned char*>( text.str().c_str() ) );
    }
    glMatrixMode( GL_PROJECTION );
    glPopMatrix();
    glMatrixMode( GL_MODELVIEW );
    glPopMatrix();
}

11. End namespace render3D.

} // namespace render3D

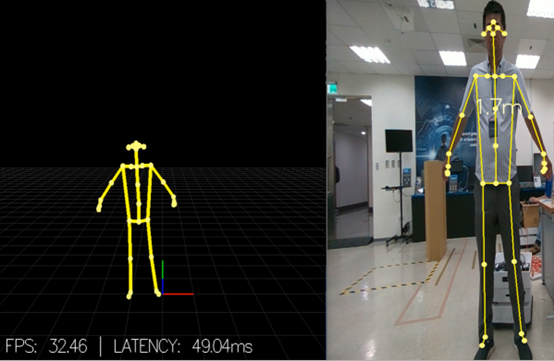

Expected output #

Updated on 2025 年 9 月 4 日

LIPSense Body Pose

WELCOME

LIPSedge™ SDK 1.x

DOCUMENTS, INSTALLATION & SETUP

skeleton_example

Overview #

Tutorial #

[main.cpp] – Tutorial #

[GLUTWindow.cpp] – Tutorial #

[PoseResults.cpp] – Tutorial #

[RenderColor.cpp] – Tutorial #

[render3D.cpp] – Turorial #

Expected output #
