LIPSFace Overview

1. Overview #

LIPSFace™ HW Series On-Device 3D Facial Recognition Camera Kit is designed for facial recognition applications. The camera kit supports both facial recogntion and liveness detection to deliver accurate and anti-spoofing 3D facial recognition. With depth accuracy of 0.3% @100cm, the camera kit effectively blocks spoofing attacks and makes user authentication more secure. Equipped with 940nm VCSEL, LIPSFace™ HW Series **** is suitable for the deployment in both indoor and outdoor environments with harsh light conditions.

LIPSFace™ HW Series enables you to build a facial authentication solution that prevents unauthorized access with a less than 0.001% Spoof Acceptance Rate, 99.00% True Acceptance Rate and a one in one million False Acceptance Rate.

With a fast and easy enrollment, only registered users are authenticated — and Face Recognition speed takes less than a second. On-device 3D facial recognition & anti-spoofing authentication could store up to 1000 IDs.

Notice: The sample codes as below are based on HW120/125 SDK v1.0.3.0 “LIPS_Samples/Ni2FaceRecognition-gl/Source/main.cpp”

2. Platforms Supported #

  • Windows 10 (tested on windows 10, msvc 2017)
  • Linux Ubuntu 18.04/20.04 LTS (tested on ubuntu 18, gcc 7.5+)

3. Software Architecture #

LIPSFace1 - LIPS® Developer Documentation

4. Build #

Use CMake version 3.1 or above:

$ cd C:\Program Files\OpenNI2\LIPS_Samples\Ni2FaceRecognition-gl

$ mkdir Build

$ cd Build

$ cmake ..

5.LIPSFace™SDK API #

NameLanguageDescriptpionOSExtra Cmake flag nedded
Get serial numberC++Get camera serial number.Windows, LinuxNone
Get firmware versionC++Get camera firmware versionWindows, LinuxNone
Get driver versionC++Get camera driver versionWindows, LinuxNone
Get supported video modesC++Provides a list of video modes that this camera can supportWindows, LinuxNone
Get laser statusC++Get the status of the laserWindows, LinuxNone
Set laser statusC++Set the status of the laserWindows, LinuxNone
Face recognitionC++Connect to device and perform face recognitionWindows, LinuxNone
Face registrationC++Enroll one face id for a new user.Windows, LinuxNone
Delete faces in face databaseC++Delete a registered user’s face id from the database on deviceWindows, LinuxNone
Camera start/stopC++Start/stop data generation from this video streamWindows, LinuxNone
Get video modeC++Get the video mode the camera was configured to when the frame was produced and can be used
to determine the pixel format and resolution of the data. It will also provide the frame rate
that the camera was running at when it recorded this frame.		Windows, LinuxNone
Set video modeC++Setter function for the resolution of this VideoModeWindows, LinuxNone
Query frameC++Read the next frame from this video streamWindows, LinuxNone
MirrorC++
\Enable or disable mirroring for this stream		Windows, LinuxNone

5. Sample Code #

5.1 Device #

The sample code shows how to get important device information from the library.

1. Get serial number #

openni::Device devDevice;

char serialNumberBuffer[1024] = { 0 };

devDevice.getProperty( ONI_DEVICE_PROPERTY_SERIAL_NUMBER, &serialNumberBuffer );

printf( "serial number = %s\n", serialNumberBuffer );

2. Get firmware version #

openni::Device devDevice;

char firmwareVersionBuffer[1024] = { 0 };

devDevice.getProperty( ONI_DEVICE_PROPERTY_FIRMWARE_VERSION, &firmwareVersionBuffer );

printf( "firmware version= %s\n", firmwareVersionBuffer );

3. Get driver version #

openni::Device devDevice;

OniVersion driverVersion;

devDevice.getProperty( ONI_DEVICE_PROPERTY_DRIVER_VERSION, &driverVersion );

printf( "driver version = %i.%i.%i.%i\n", driverVersion.major, driverVersion.minor, driverVersion.maintenance, driverVersion.build );

4. Get supported video modes #

openni::Device devDevice;

const openni::SensorInfo* sinfo = devDevice.getSensorInfo( openni::SENSOR_COLOR );

const openni::Array< openni::VideoMode>& modes = sinfo->getSupportedVideoModes();

for ( int i = 0; i < modes.getSize(); i++ )
{
    int xRes = modes[i].getResolutionX();
    int yRes = modes[i].getResolutionY();
    int fps = modes[i].getFps();

    openni::PixelFormat pixelFormat = colorStream.getVideoMode().getPixelFormat();

    printf( "xRes = %i, yRes = %i, fps = %i\n", xRes, yRes, fps );
}

5. Get laser status #

openni::Status rc;
int mode;
rc = devDevice.getProperty( LIPS_DEVICE_PROPERTY_LASER_ENABLE, &mode );

6. Set laser status #

rc = devDevice.setProperty( LIPS_DEVICE_PROPERTY_LASER_ENABLE, &mode, sizeof( int ) );

5.2 FaceRecognition #

The sample code shows basic usage of the library. It shows how to register a new user, how to recognize a user, and how to delete faces in database.

1. Face recognition – Connect to device and perform face recognition. #

If you use LIPSFace SDK v1.0.3.0

unsigned short face_id = 0x0000;

devDevice.setProperty( LIPS_DEVICE_FACE_RECOGNITION, &face_id, sizeof( unsigned short ) );

unsigned short int result;

devDevice.getProperty( LIPS_DEVICE_FACE_RECOGNITION, &result );

If you use LIPSFace SDK v1.0.3.1 or later

devDevice.setProperty( LIPS_DEVICE_FACE_RECOGNITION, NULL, NULL );

unsigned short int result;

devDevice.getProperty( LIPS_DEVICE_FACE_RECOGNITION, &result );

2. Face registration – Enroll one face id for a new user #

If you use LIPSFace SDK v1.0.3.0

unsigned short int face_id = 0x0000;

devDevice.setProperty( LIPS_DEVICE_FACE_REGISTRATION, &face_id, sizeof( unsigned short ) );

unsigned short int result;

devDevice.getProperty( LIPS_DEVICE_FACE_REGISTRATION, &result );

If you use v1.0.3.1 or later

devDevice.setProperty( LIPS_DEVICE_FACE_REGISTRATION, NULL, NULL );

unsigned short int result;

devDevice.getProperty( LIPS_DEVICE_FACE_REGISTRATION, &result );

“

3. Face Deletion – Delete a registered user’s face id from the database on device #

unsigned short face_id = 0xFFFF;

devDevice.setProperty( LIPS_DEVICE_FACE_DELETE_DATABASE, &face_id, sizeof( unsigned short ) );

unsigned short int result;

devDevice.getProperty( LIPS_DEVICE_FACE_DELETE_DATABASE, &result );

6. Appendix #

6.1 SDK Error Code (Facial Recognition/Face Registration) #

The list below is a partial list, please refer to most recent documents for updated material, including User Manual and Updates on each section on our documentation.

CodeMessage
0xE001Face Not Recognize
0xE002No Face Detect
0xE003Liveness Fail
0xE004Mask Fail
0xE005Liveness Fail
0xE006Get Feature Fail
0xE00CHas Shielding Fail
0xE00DEye Unclear
0xE00ELow Confidence Landmark

6.2 SDK Warning Code (Facial Recognition/Face Registration) #

The list below is a partial list, please refer to most recent documents for updated material, including User Manual and Updates on each section on our documentation.

CodeMessage
0xF001Face distance too close
0xF002Face distance too far
0xF003Face angle too large (yaw/pitch/roll > angle threshold)
0xF004Mask judge fail
0xF005Face beyond the top edge
0xF006Face beyond the bottom edge
0xF007Face beyond the left edge
0xF008Face beyond the right edge
0xF009Face at the top left corner
0xF00AFace at the bottom left corner
0xF00BFace at the top right corner
0xF00CFace at the bottom right corner

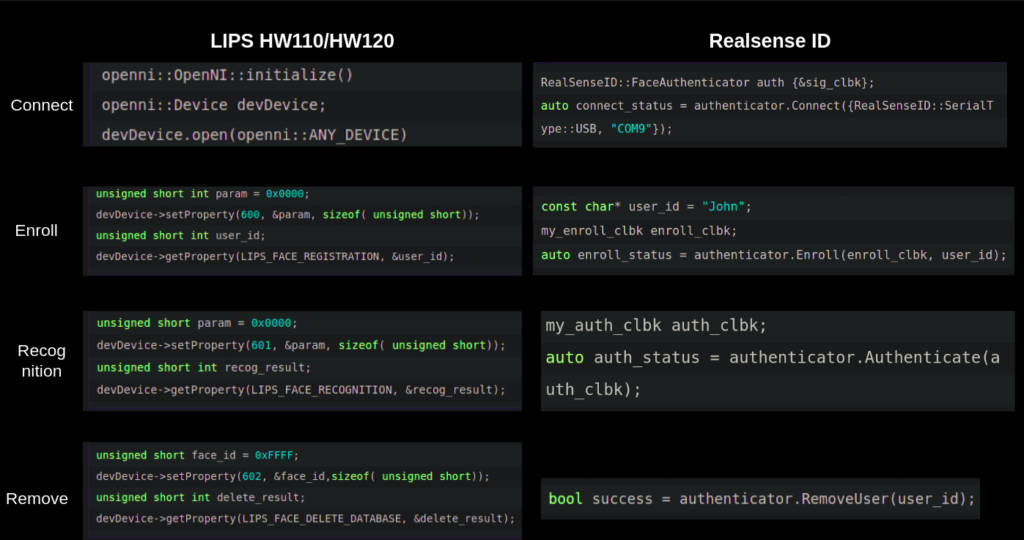

6.3 Function Map to Realsense F455 #

LIPSFace2 - LIPS® Developer Documentation
