Installation Example

This is the new LIPSedge™ SDK 1.x

LIPSedge™ SDK #

Quick Start #

  • Unzip downloaded SDK, launch the installer.
IE1 - LIPS® Developer Documentation
IE2 1 - LIPS® Developer Documentation

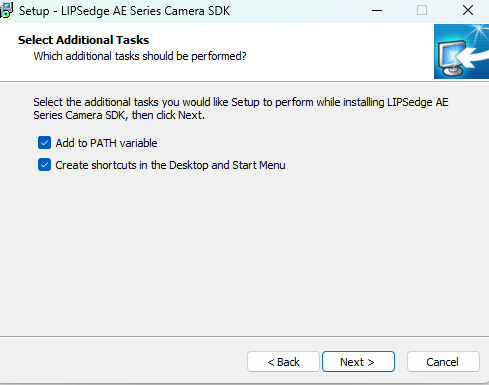

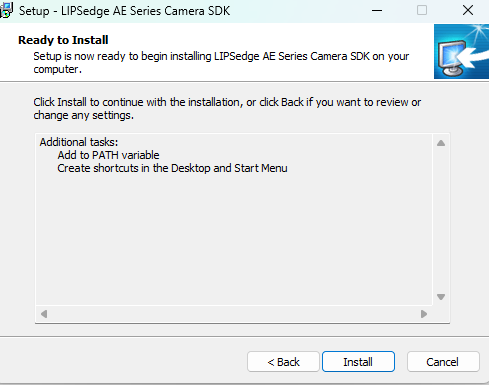

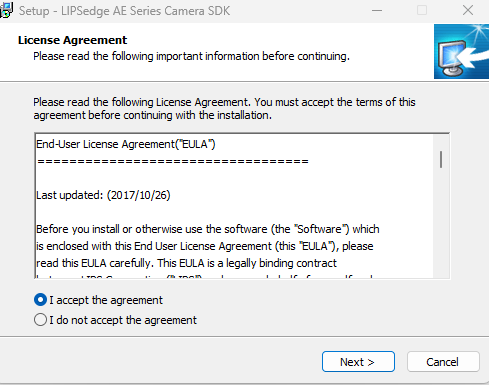

  • Follow the installer to finish installation.
IE2 - LIPS® Developer Documentation
IE3 - LIPS® Developer Documentation
IE4 - LIPS® Developer Documentation
  • After installation, a SDK directory is create on the desktop.
IE5 - LIPS® Developer Documentation

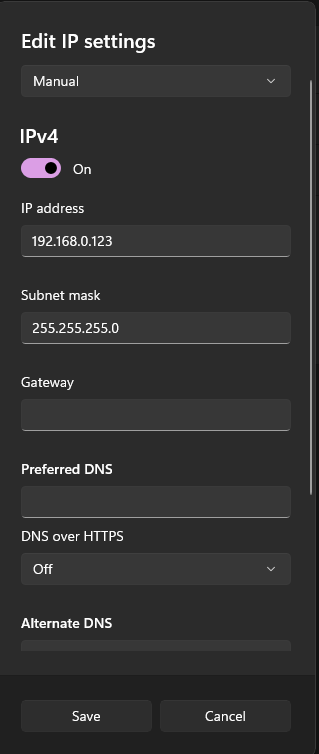

  • AE400 / AE450 has default IP address 192.168.0.100. Make sure you config your host machine to the same local network.
IE6 - LIPS® Developer Documentation

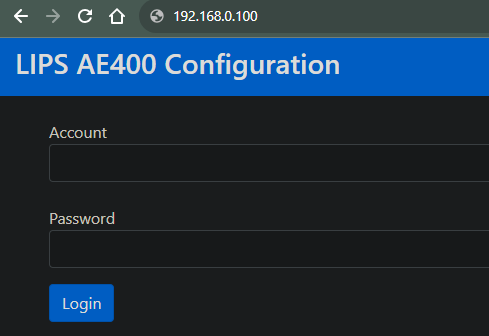

  • You can access AE400 / AE450 web admin page using any browser with camera IP address. If you can access admin page, the host and camera is connected.
IE7 - LIPS® Developer Documentation

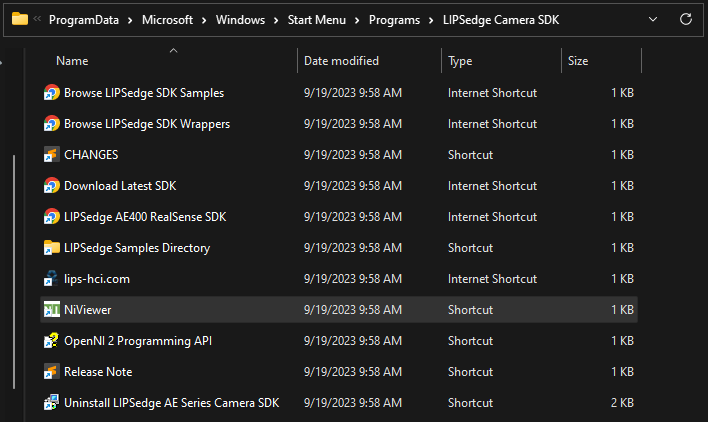

  • Use NiViewer to view camera video feed.
IE8 - LIPS® Developer Documentation
IE9 - LIPS® Developer Documentation

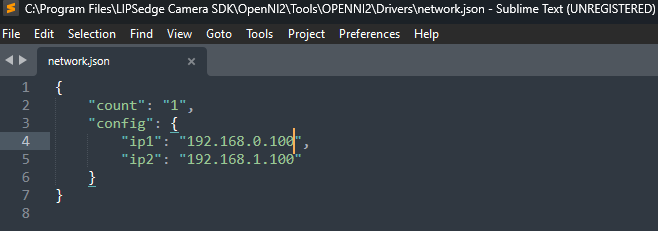

  • If you changed camera’s IP address in admin page, make sure to change the network settings in C:\Program Files\LIPSedge Camera SDK\OpenNI2\Tools\OPENNI2\Drivers\network.json before launching NiViewer.
IE10 - LIPS® Developer Documentation
Updated on 2025 年 7 月 28 日
